Figure 3.

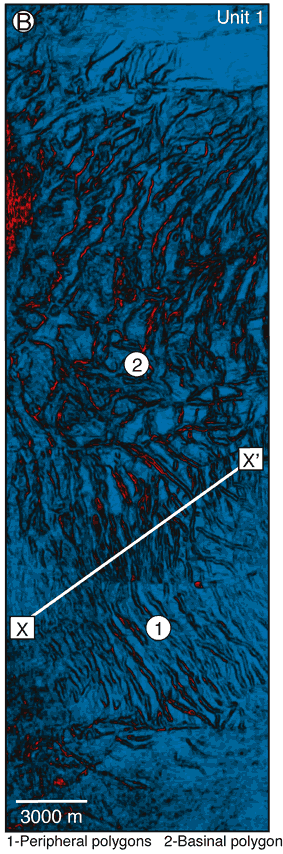

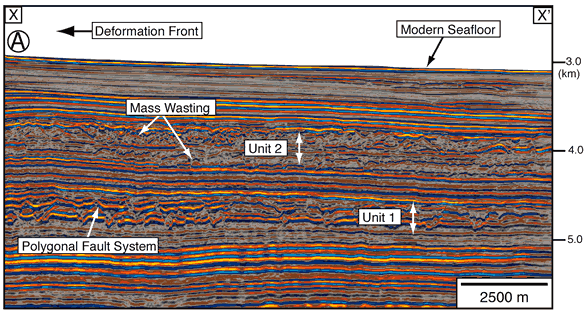

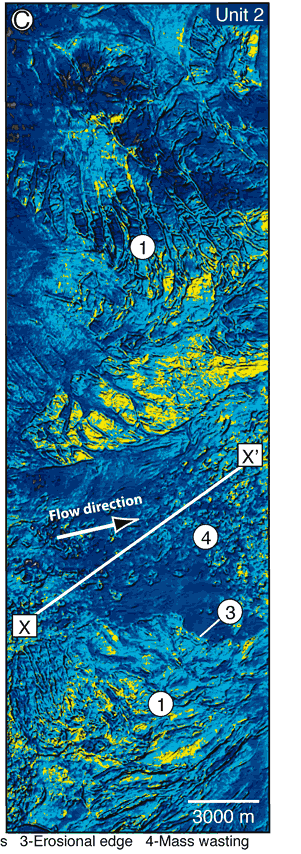

(A) Seismic profile, (B) semblance attribute map, and (C) spectral decomposition map on two different deep-water polygonal fault systems within Cenozoic strata of the northern Gulf of Mexico. Semblance attributes measure lateral changes in the seismic response caused by variations in structure and stratigraphy. Spectral decomposition breaks the seismic signal into its dominant frequency components to highlight structural and stratigraphic features. Seismic data courtesy of CGGVeritas.
