Figure 2.

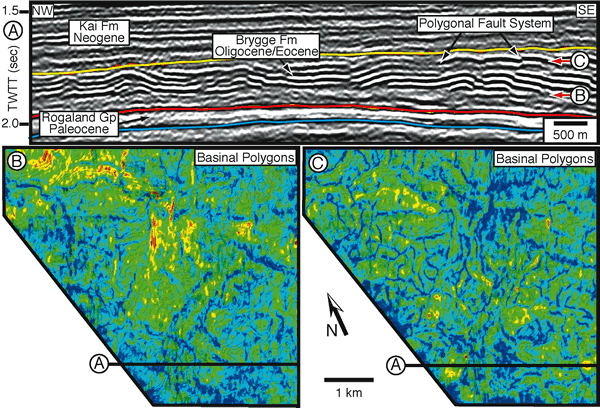

Seismic profile and maps of root mean square of the seismic wave amplitudes showing two levels of a deep-water polygonal fault system within the Eocene-Oligocene Brygge Formation (offshore Norway). Seismic data courtesy of the Norwegian Petroleum Directorate. TWTT—two-way travel time.
