Figure 2.

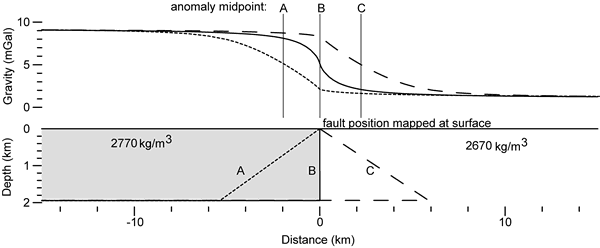

Cross section to illustrate unique interpretation of fault dip if surface trace of the fault is known. Midpoint of the step in gravity anomaly falls directly over fault trace for a vertical fault. If the midpoint is offset from the fault trace, it indicates the direction of fault dip.
